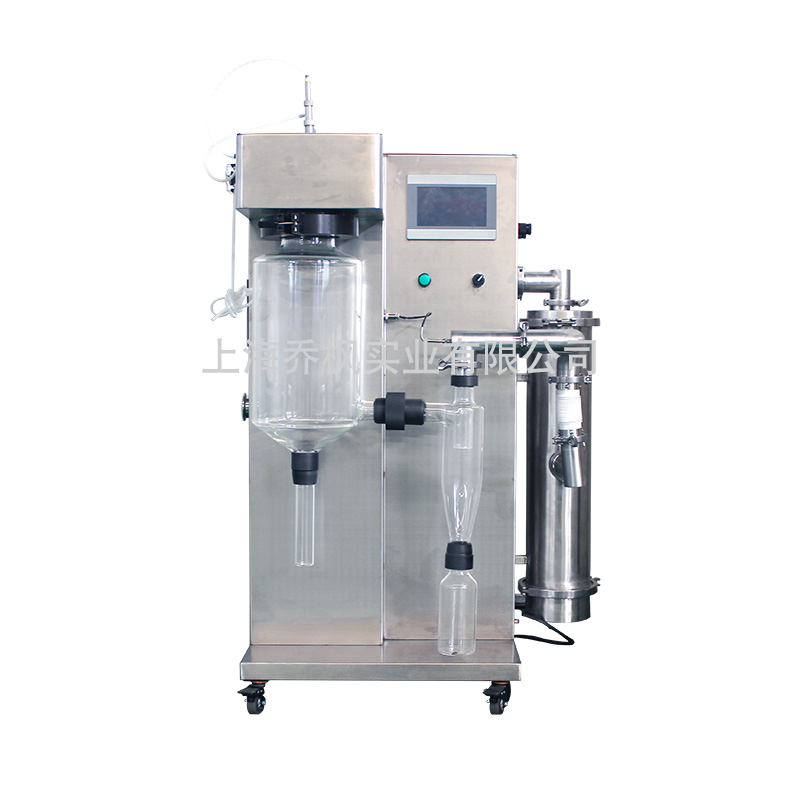

Experimental spray drier - QFN - 8000 n

Device name:	lab spray dryer
Equipment type:	qfn - 8000n
Equipment specifications:	1500ml/h (support customized)
Test machine:	Support test making experiment
Scope of application:	Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials.
Application scenario:	Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed?	National three year warranty
Contact number:	17317246351

Detail

1.Product introduction

Experimental spray drying(spray dryer / spray dryer) and its main application in the laboratories of universities, research institutes and food pharmaceutical and chemical enterprises to produce micro particle powder, which is widely applicable to all solutions such as emulsions and suspensions, and is suitable for drying of heat sensitive substances, such as biological products, biological pesticides, enzyme preparations, etc. Material is only heated when sprayed into foggy particles, so it is only heated instantaneously, which can keep the active ingredients of these materials from being destroyed after drying.

Two.Main features:

Qiao Feng refine sprinkler head with high efficiency.

Color LCD touch screen parameters display: inlet temperature / outlet temperature / peristaltic pump speed / air volume / needle frequency.

Full automatic control: one button start, set the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the touch screen displays animation and the running process is clearly displayed. When the machine is shut down, it only needs to press the stop button, and the machine automatically and safely shut down.

Manual control: If the process parameters need to be adjusted in the experimental process, it can be easily switched to manual state. The whole experimental process of color touch screen dynamic display (animation)

There is a nozzle cleaner (through needle), which can be automatically cleared when the nozzle is blocked, and the frequency of through needle can be automatically adjusted.

Shutdown protection function: Just press the stop key when shutdown, and the machine will stop running immediately except for the fan, so as to ensure that the heating part of the equipment will not be burned out due to misoperation (forced shutdown of the fan).

The spray, drying and collection system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process can be carried out in a non polluting environment.

Built-in imported oil-free air compressor, the diameter of powder spraying is normal distribution, fluidity is very good, noise is very low, less than 60 db.

Two atomizing structure of fluid spray, the whole machine is made of high quality stainless steel, compact design and no auxiliary equipment.

In the design of drying temperature control, real-time PID constant temperature control technology is adopted to make the temperature control in the whole temperature zone accurate and the heating temperature control accuracy (+1 C).

In order to maintain the purity of the sample, the air inlet filter is equipped.

The feed quantity can be adjusted by feeding peristaltic pump, and the minimum sample volume can reach 80ml.

After drying, the particle size of the finished powder is even, and more than 95% of the dry powder is in the same particle size range.

For viscous materials, there is a nozzle cleaner (through needle). When the nozzle is blocked, it will be automatically cleared. The frequency of through needle can be automatically adjusted.

The upgraded atomization system can effectively solve the problem of adhesion of some viscous materials in cyclone separators. Causes the material to accumulate in the cyclone separator for a long time.

3. technical parameters:

lab spray dryer	qfn - 8000.N
Maximum throughput	1500ml
Minimum feed quantity	80ml
Drying chamber diameter (mm)	￠300
Atomization structure	Atomization system (QFN-E-NZI1VER2018-1A)
Electronic control system	Qiao Feng special atomizing system (QFN-CM-ES-VER2018-1A)
Maximum intake temperature	~250 C (adjustable)
Hot air condition	Introduction of wind
Heater capacity	3kw
Induced draft fan [power (kw), air volume (m /min)]	[0.25,9.5]
Compressor [power (kw), air volume (L /min)]	[0.58，108]
Electric power (kw)	4kw
Outline reference size (mm) (l×w×h)	800×600×1300
Brief description	1. atomizing chamber, cyclone separator, material collecting bottle, waste collecting bottle, and high borosilicate glass. 2. the chassis adopts SUS304. 3. configure the original QFN-VER-0.5 drying system. 4., we can clearly check the atomization process.
Installation weight (Reference)	100kg

Power supply

220V/-3 (can be customized according to different national standards)

Note 1: water evaporation at inlet temperature of 250 C.
2: for more evaporation equipment, please inquire online or call our company.
